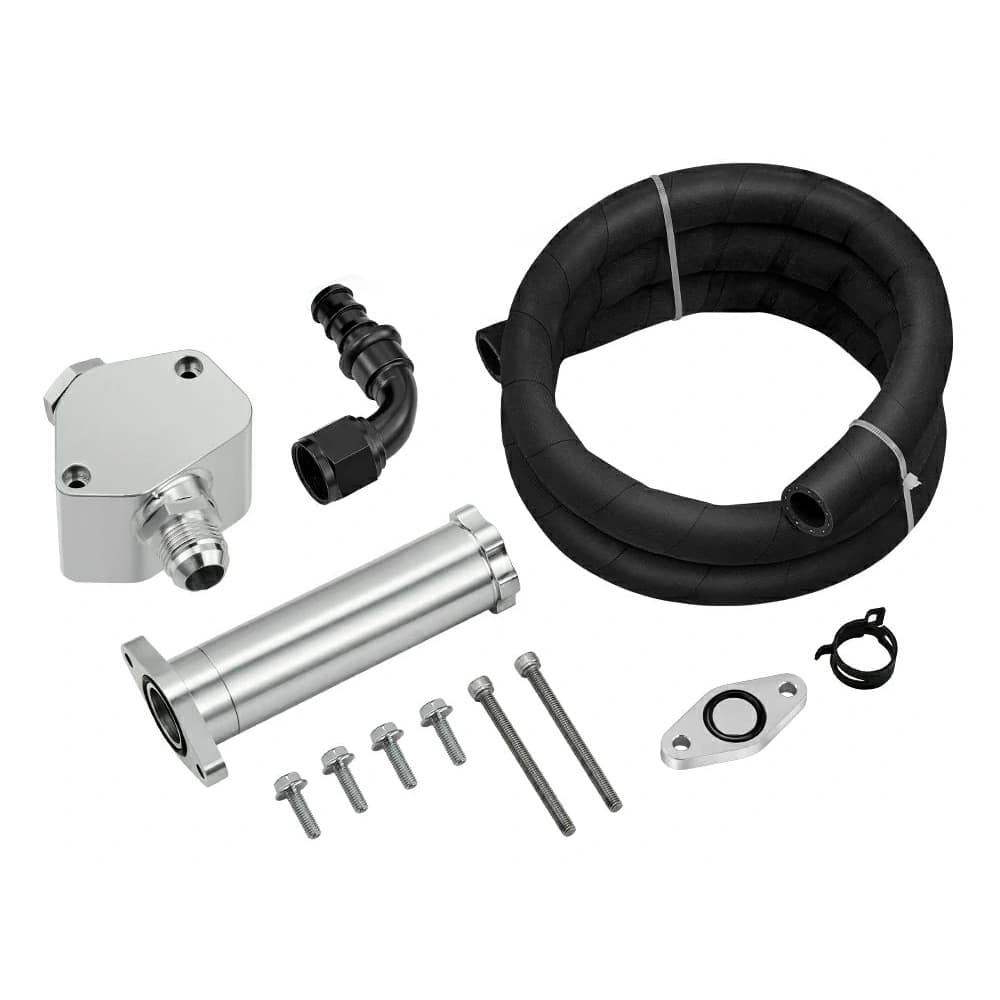

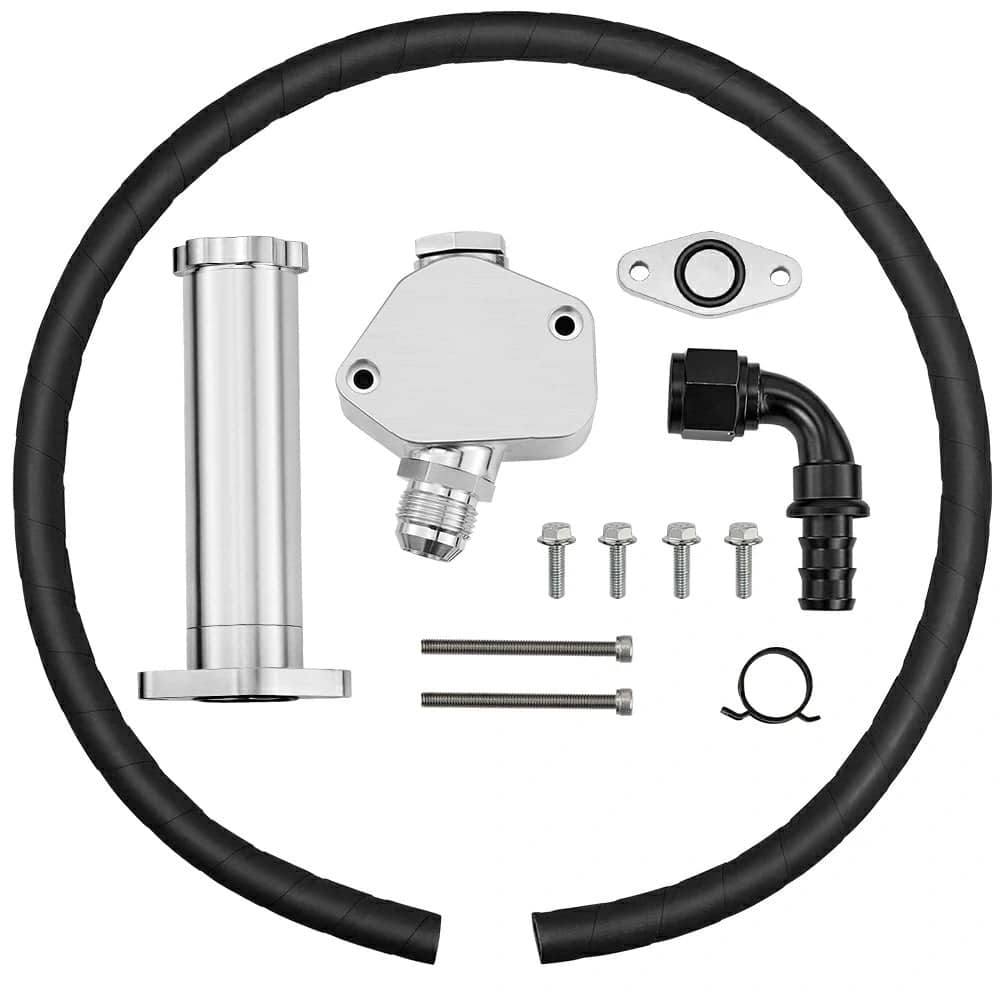

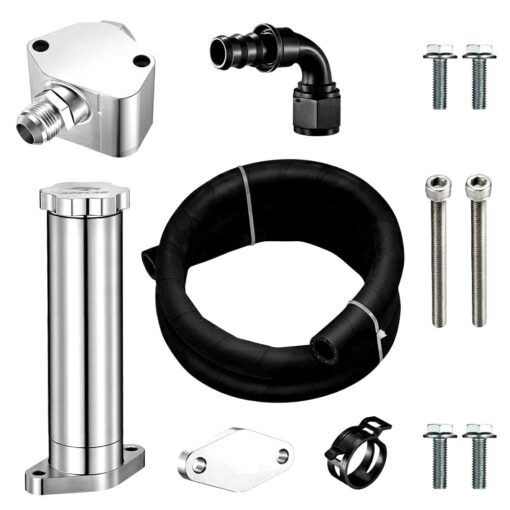

CCV Reroute/delete kit For L5P 6.6L Duramax(2017-2024)

CCV Reroute/Delete Kit for 2017-2024 L5P 6.6 Duramax

Fitment:

2017-2024 L5P 6.6L Duramax Diesel GMC Sierra 2500 3500 HD

2017-2024 L5P 6.6L Duramax Diesel Chevrolet Silverado 2500 3500 HD

Crew cab short bed & crew cab long bed. This will not fit the 3500/4500/5500 Cab&Chassis commercial style truck.

What is a CCV system?

CCV stands for “Crankcase Ventilation”. On all diesels, and especially the L5P, the CCV is connected to a valve cover to extract the combustion gasses that have entered the crankcase via bypassing the piston rings, and other gasses as the result of oil aeration. The CCV system connects to the factory intake or intake manifold, in the case of diesels – the intake air horn. The factory intake air horn draws a vacuum across the CCV system by way of Bernoulli’s principle to pull crankcase gases out of the engine and reburn them in the motor. The problem is often as a diesel wears out they end up with a lot of blow by and oil injection into the inlet of the turbo. The truck consumes this oil as part of emissions standards and best practices of crankcase evacuation.

What is the purpose of this upgrade to the existing L5P CCV system?

The purpose of this upgrade is to improve the reliability of the existing L5P CCV system, which is prone to failure due to plastic cracking over time, and to prevent high-temperature charge air from the turbo from entering the intake air horn through the factory CCV system.

How does the CCV upgrade system work once installed?

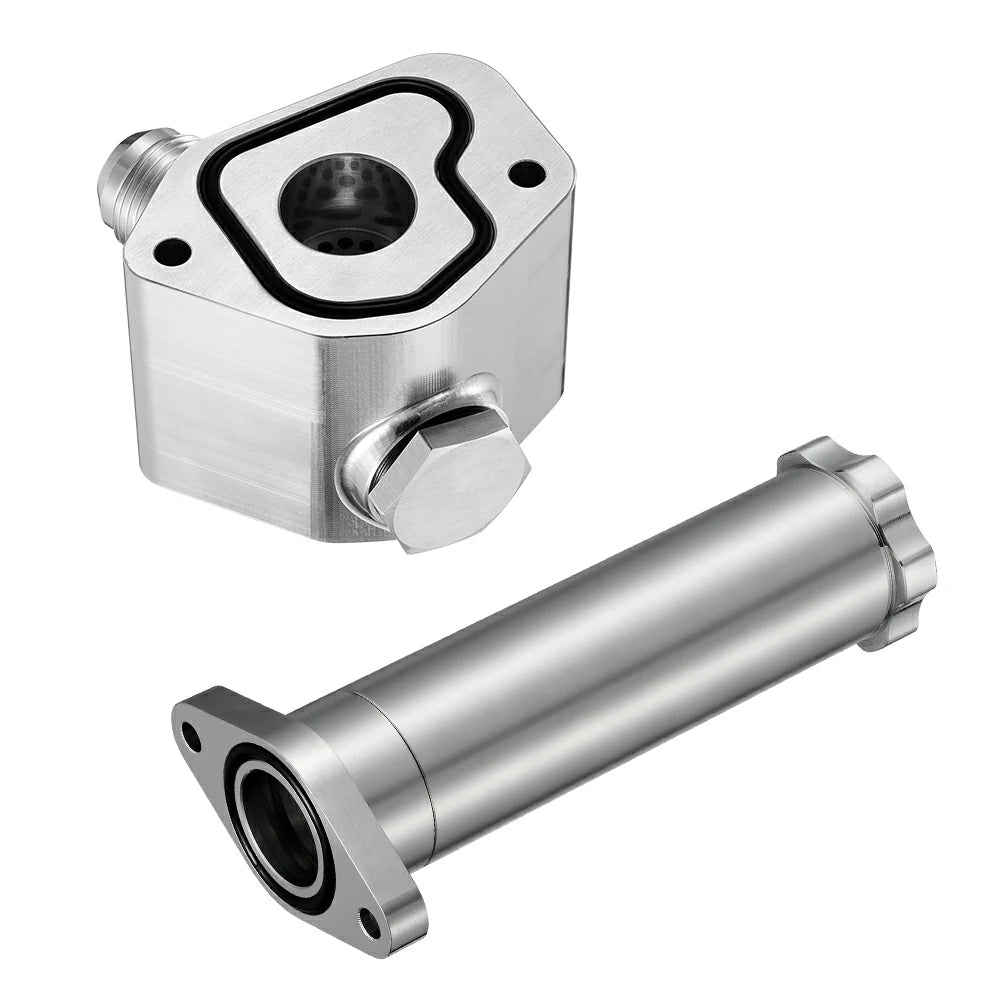

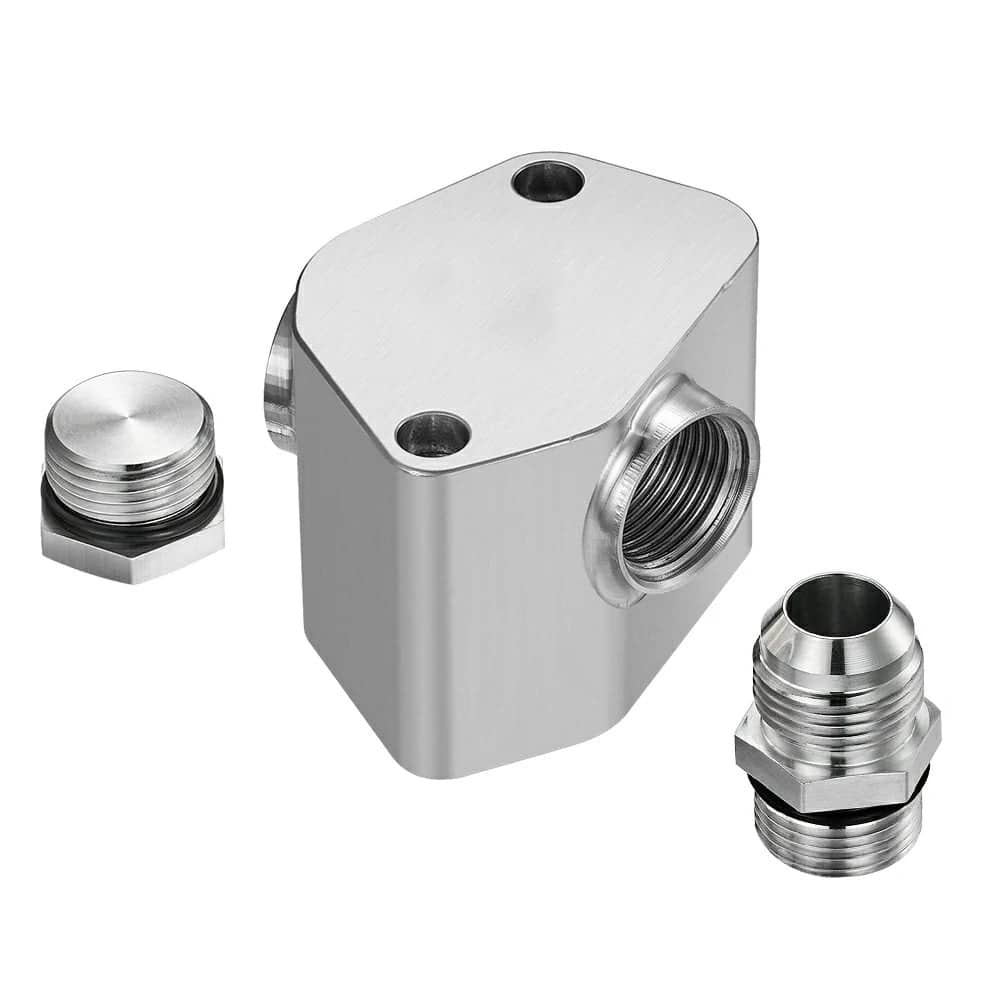

The CCV upgrade system, once installed, allows for more efficient removal of oil from the CCV supply line using two integrated differential drop devices in the CCV block. This method, commonly used in marine and high-output diesel applications, is passive and has no moving parts. It helps maintain a clean intake track and prevents hot air and oil from entering the system.

Why is the factory CCV system problematic?

The factory CCV system tends to fail over time, and when it does, it allows boost pressure from the CCV to enter the intake track through the intake air horn. Additionally, it is not serviceable, and replacing it requires removing the entire driver’s side valve cover, including injectors and fuel lines, which is time-consuming and costly.

What is the advantage of removing the factory CCV component?

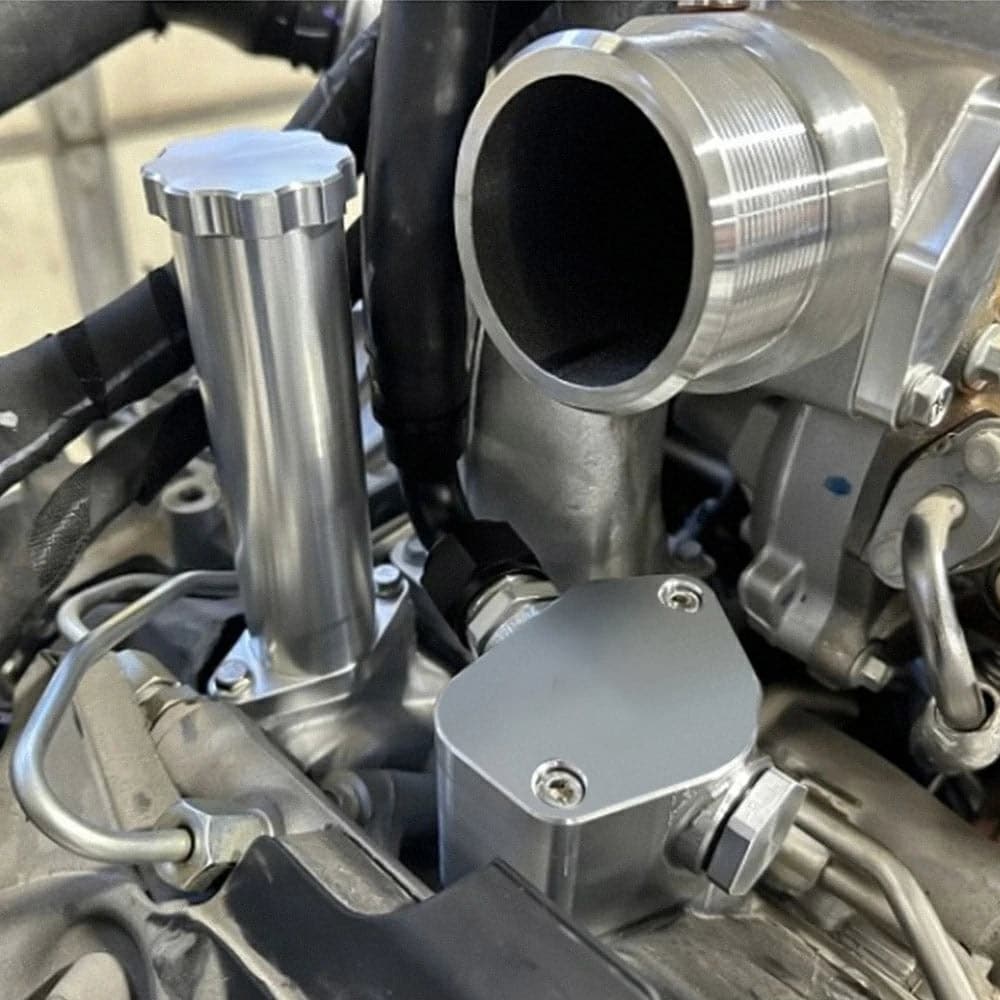

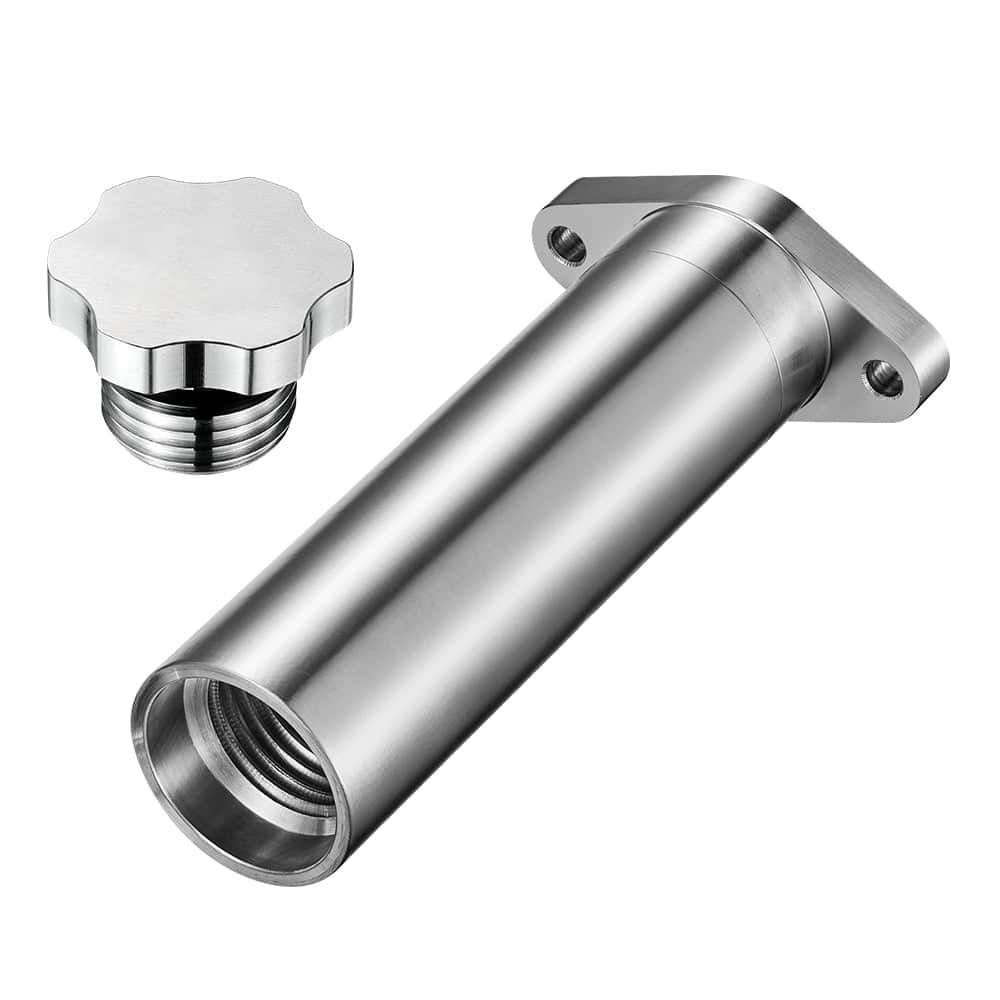

Removing the factory CCV component eliminates a potential failure point and provides a more convenient and safe oil fill location at the front of the motor. It also separates the CCV system from the oil fill port for safety reasons.
